IEC Standards Catalog - IEC Standard 90 - 6 Poles - Ø 135 x 90
IEC stands for International Elctrotechnical Commision, founded in 1906 with the purpose of establishing and implementing international standards to electric technologies and their components. International Electrotechnical Commision, (Commission electrotechnique internationale), is an international association that defines the standards for electricity, electronics and their products.
MY SELECTION
IEC STANDARD
Unified unit or axis H. in mm.
90
Poles number
6

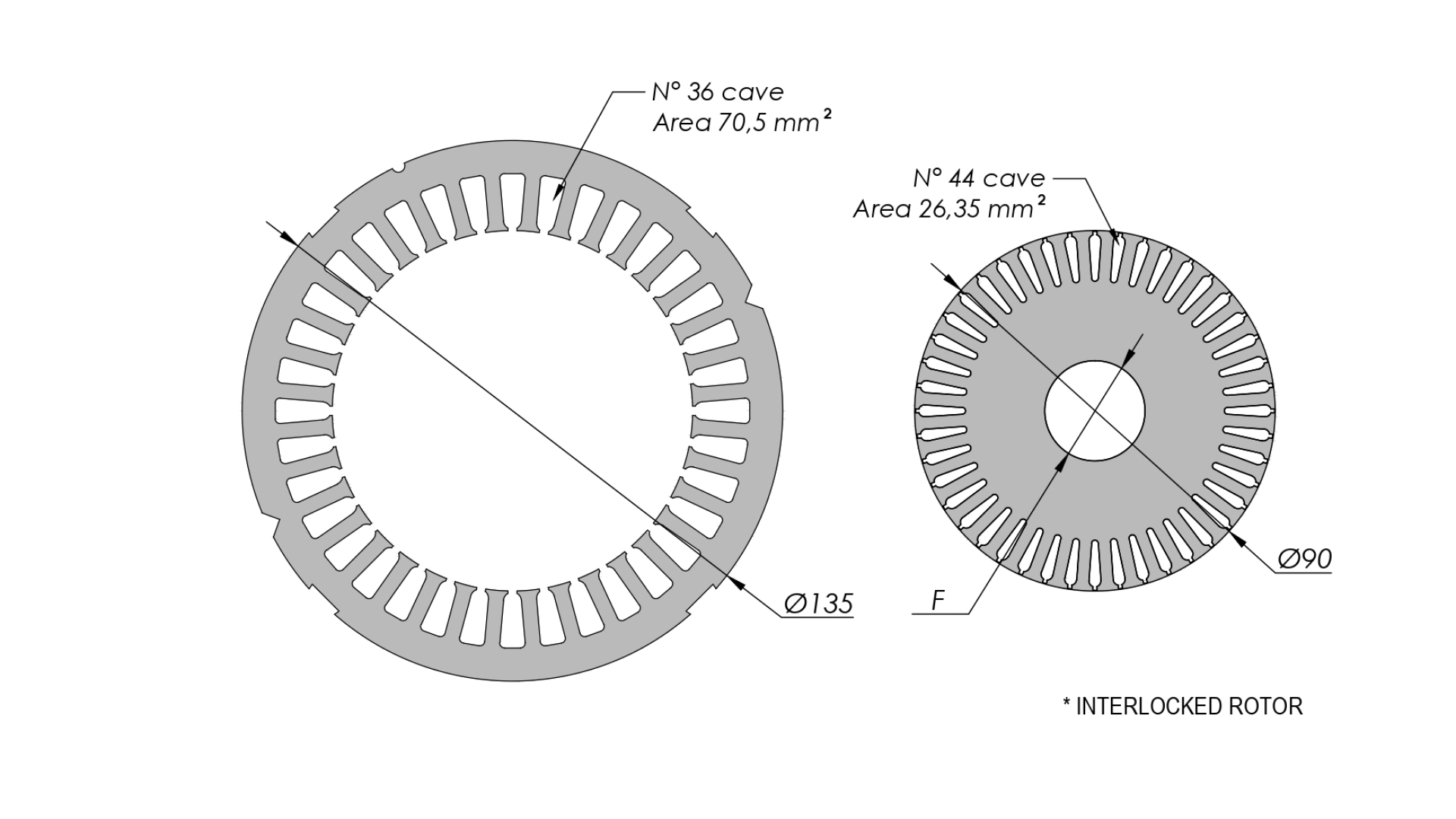

stator
DE mm toll.
External diameter of stator
135
DI mm toll.
Internal diameter of stator
90
COD
Code
495
NS n.
Number of stator slots
36
AS mm toll.
Area of stator slots
70.5
K mmq
Rad. width of stator circuit ring
8.25
S mm
Width of stator tooth
3.8
E
Entry size of stator slots
2.3
rotor
DE mm toll.
External rotor diameter
90
NR n.
Number of rotor slots
44
AR mmq
Area of rotor slots
26.35
F mm toll.
Diameter of rotor center hole
tutti i nostri prodotti possono essere realizzati secondo le nostre lamiere disponibili
