IEC STANDARD
Unified unit or axis H. in mm.
225
Poles number
4

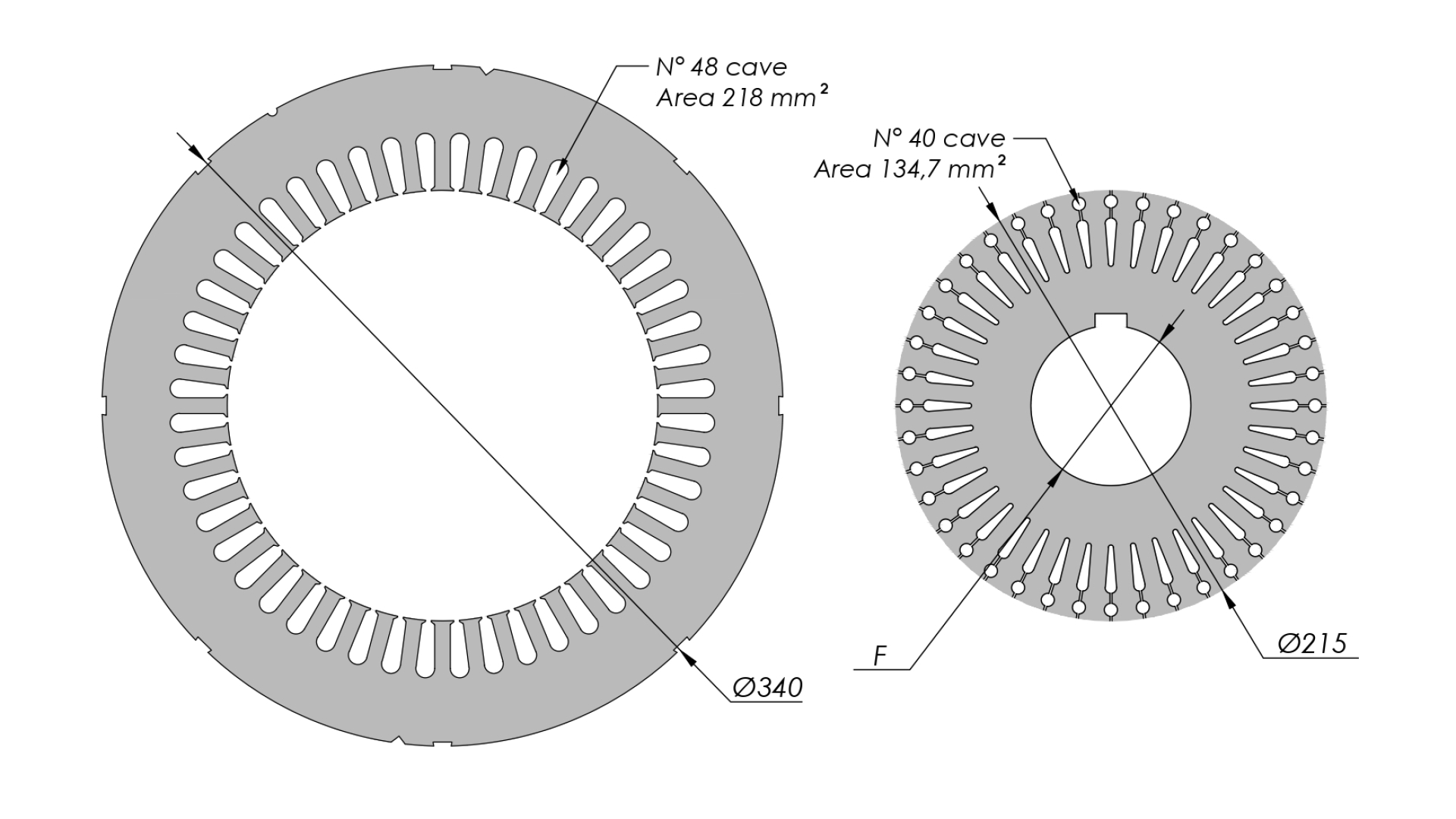

stator
DE mm toll.
External diameter of stator
340
DI mm toll.
Internal diameter of stator
215
COD
Code
780
NS n.
Number of stator slots
48
AS mm toll.
Area of stator slots
218
K mmq
Rad. width of stator circuit ring
33.76
S mm
Width of stator tooth
7.86
E
Entry size of stator slots
2.92
rotor
DE mm toll.
External rotor diameter
215
NR n.
Number of rotor slots
40
AR mmq
Area of rotor slots
134.7
F mm toll.
Diameter of rotor center hole
tutti i nostri prodotti possono essere realizzati secondo le nostre lamiere disponibili
